2. Splunk

The following provides guidance in setting splunk on OpenShift using the community splunk-operator.

2.1. Prerequisite

OpenShift cluster

2.2. Deploy Splunk Operator

2.2.2. create project

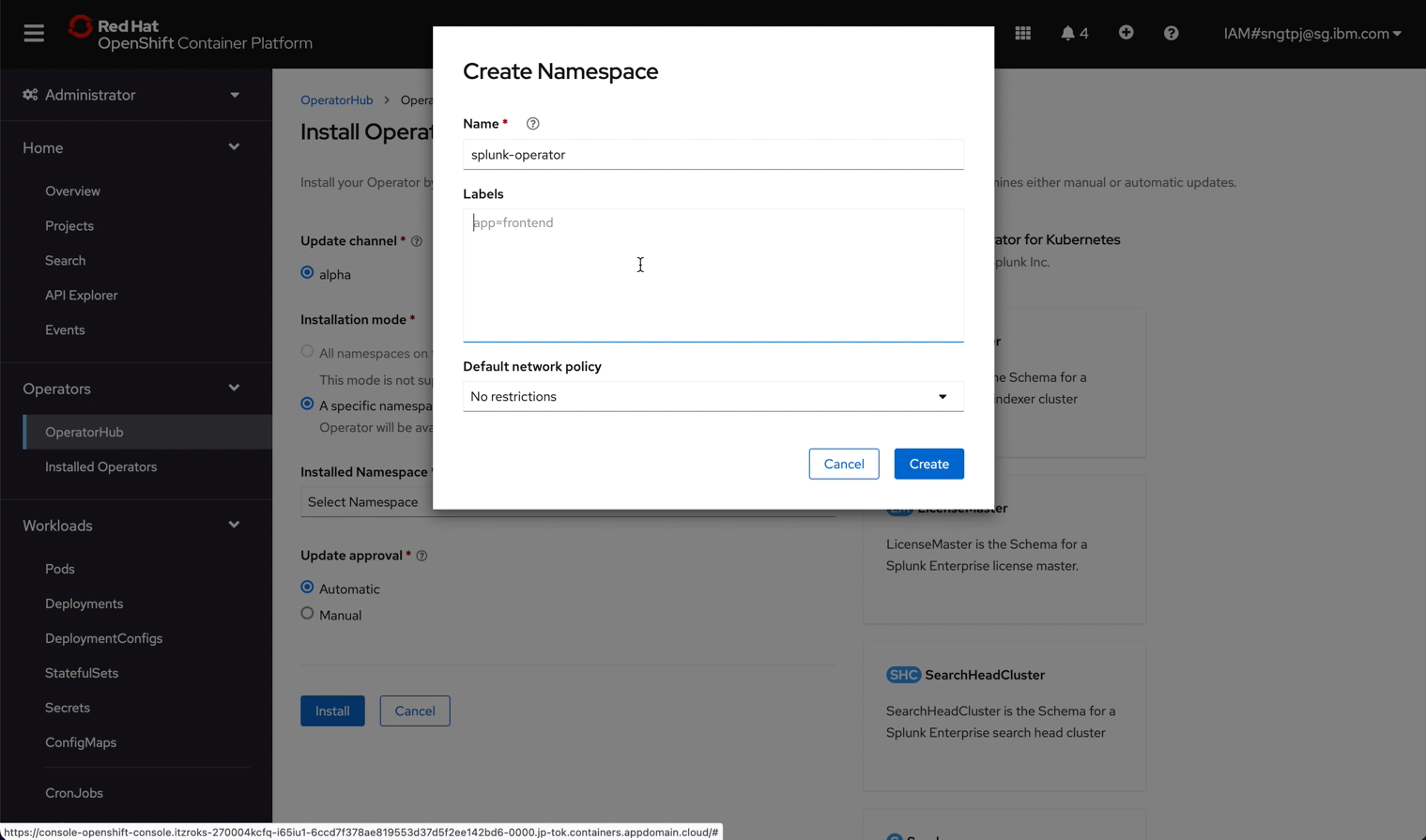

You can create the project in advance and choose the created project when you install the splunk-operator. Alternatively, you can also create project aka namesapce during installatin of splunk-operator.

oc new-project splunk-operator

create splunk-operator namespace aka project

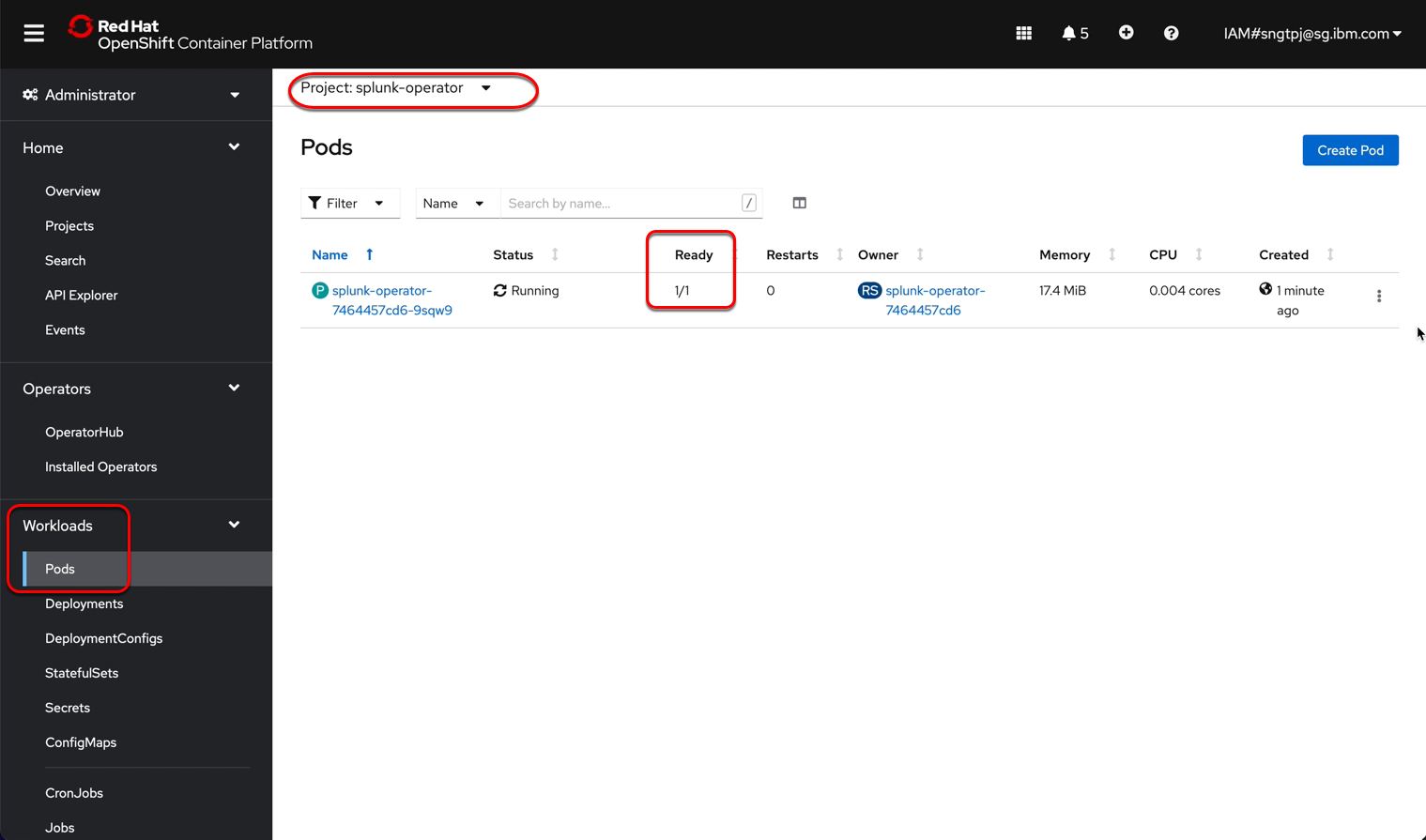

2.2.3. install the operator

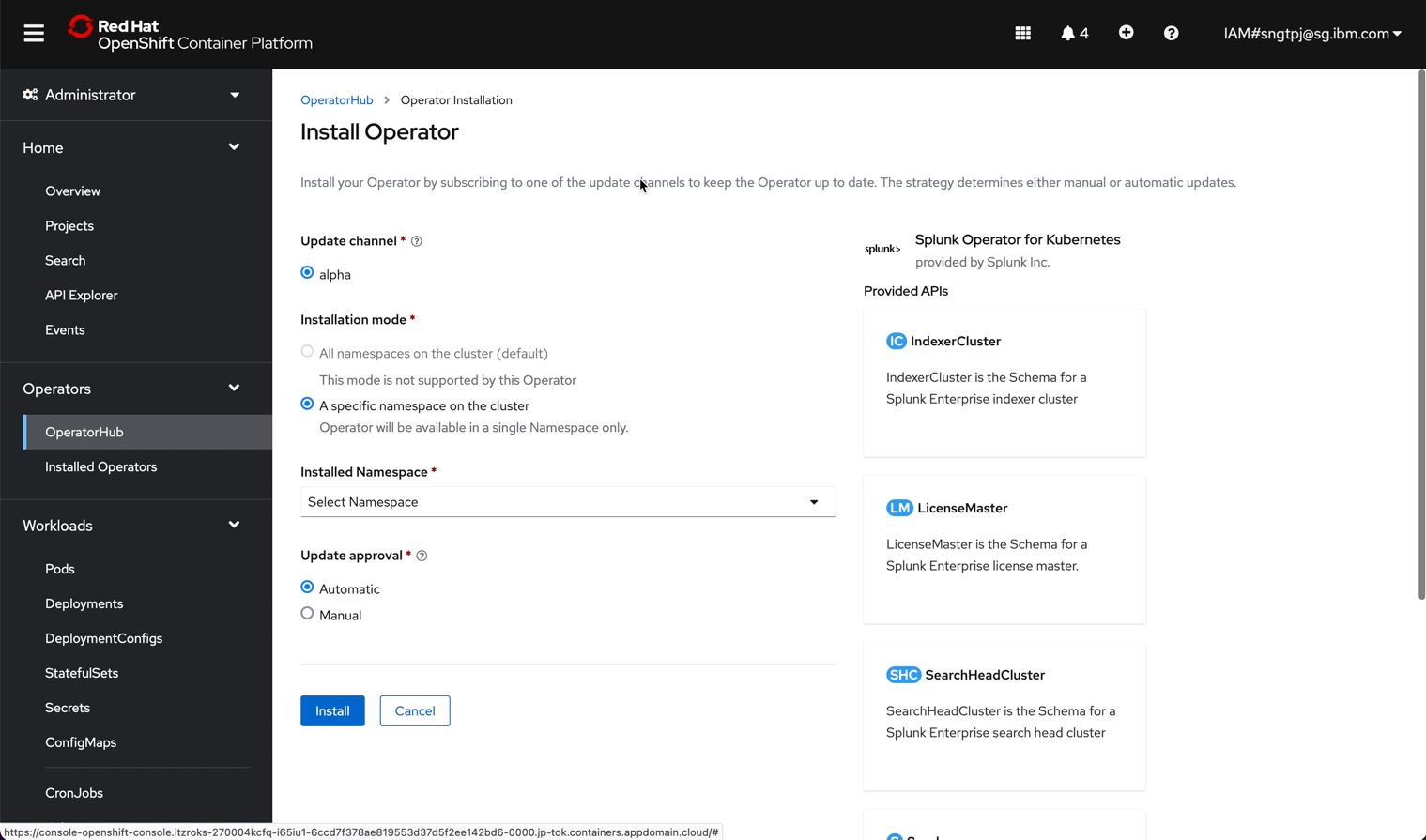

install the operator using openshift UI

2.3. Deploy Splunk Enterprise Standalone

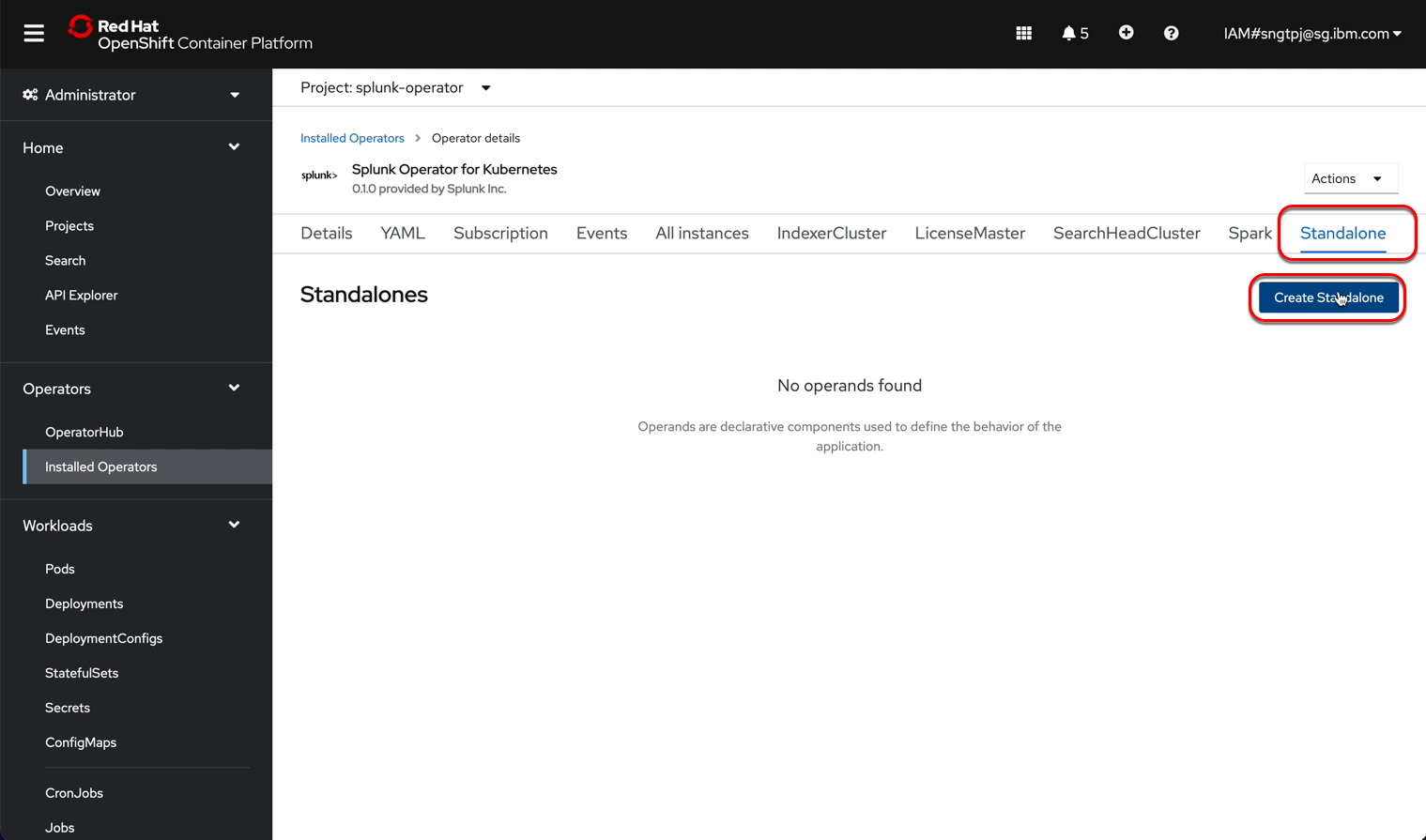

install the standalone splunk server

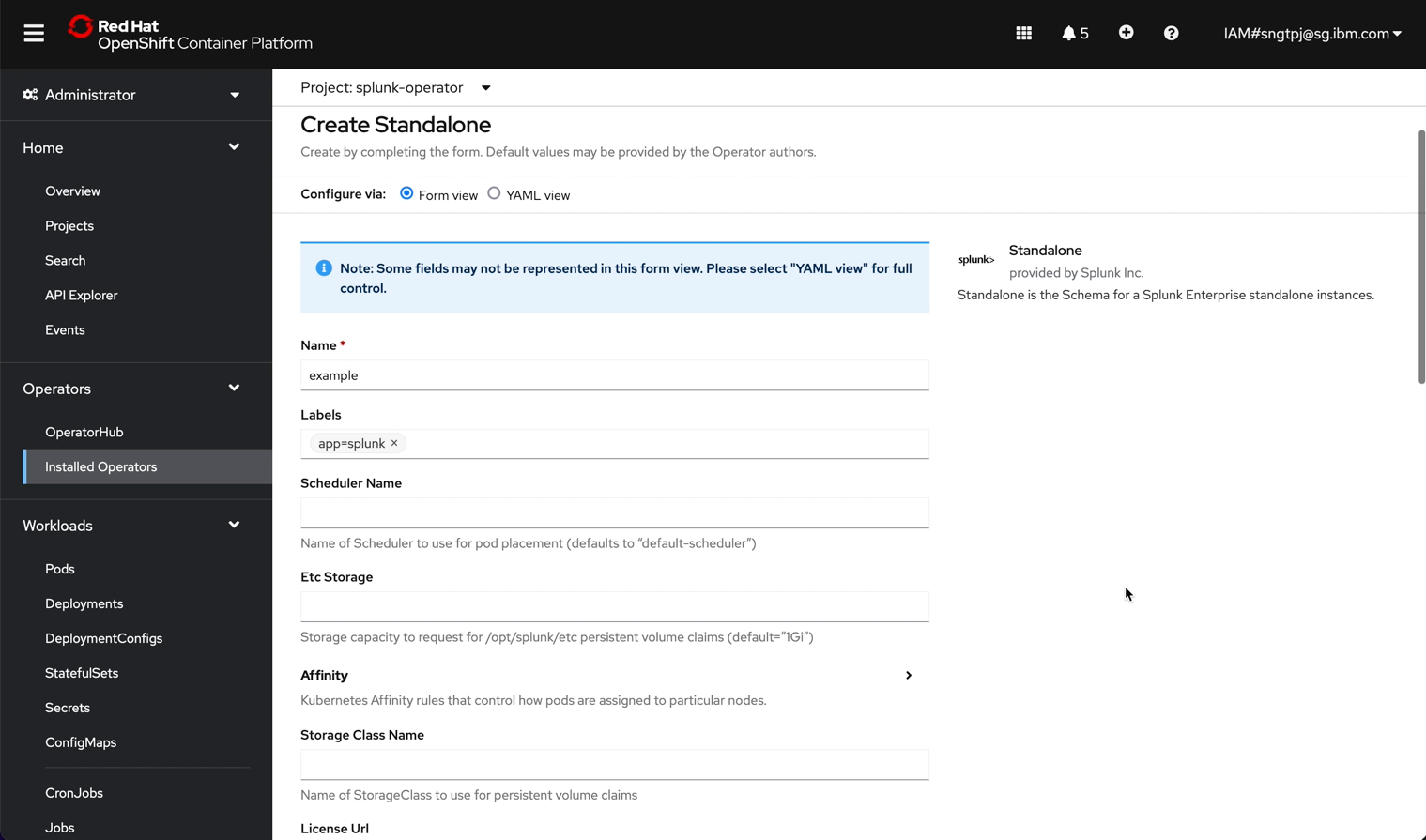

2.3.1. Deploy Splunk standalone

2.3.1.1. get password for splunk web

to get the password to login Splunk as admin

oc get secret splunk-example-standalone-secrets -o custom-columns=PASSWORD:.data.password --no-headers | base64 -D

2.3.1.2. quick local test splunk web

to test Splunk Web with your machine locally, you need to forward the port, run the following command in terminal.

kubectl port-forward splunk-example-standalone-0 8000

After you have forward the port locally, by default, the Splunk web is accessbile using using http @ http://localhost:8000

You can login to Splunk and configure to use SSL later.

2.4. Test drive splunk

clink on the route to Splunk web, login to see the following.

2.4.1. Configure Splunk

2.4.1.1. Splunk preferences (Optional)

Global preferences

SPL Editor

2.4.1.2. Server settings

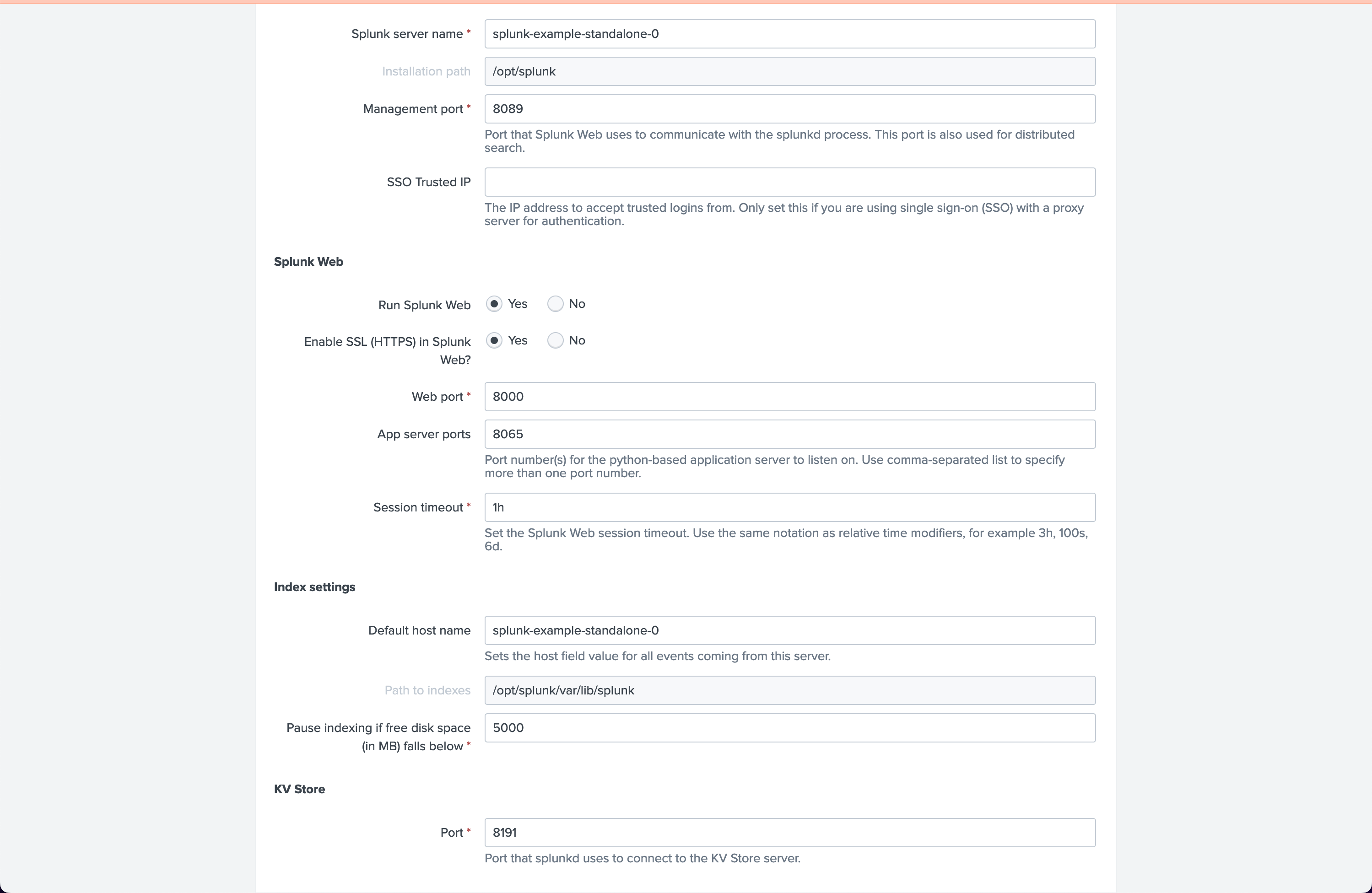

General settings

2.4.1.3. Server controls

to restart the server after your changes in configuration.

2.4.1.4. Users (Optional)

You can add users and roles accordingly.

Add user

2.4.2. Add data

you can access Add data from the Splunk Web home page or from the Settings menu.

You can download Splunk tutorial zip to test out the add data.

2.4.3. Search data

after you add the tutorial data, you can test the search, see the link to the tutorials at Resources below.

2.4.4. create route

After setting the Splunk to be served using https, you can expose your Splunk Web and API to be accessbile outside of OCP cluster.

To do that, you will need to create routes using port 8000 and 8089 for Splunk Web and Splunk REST API respectively.

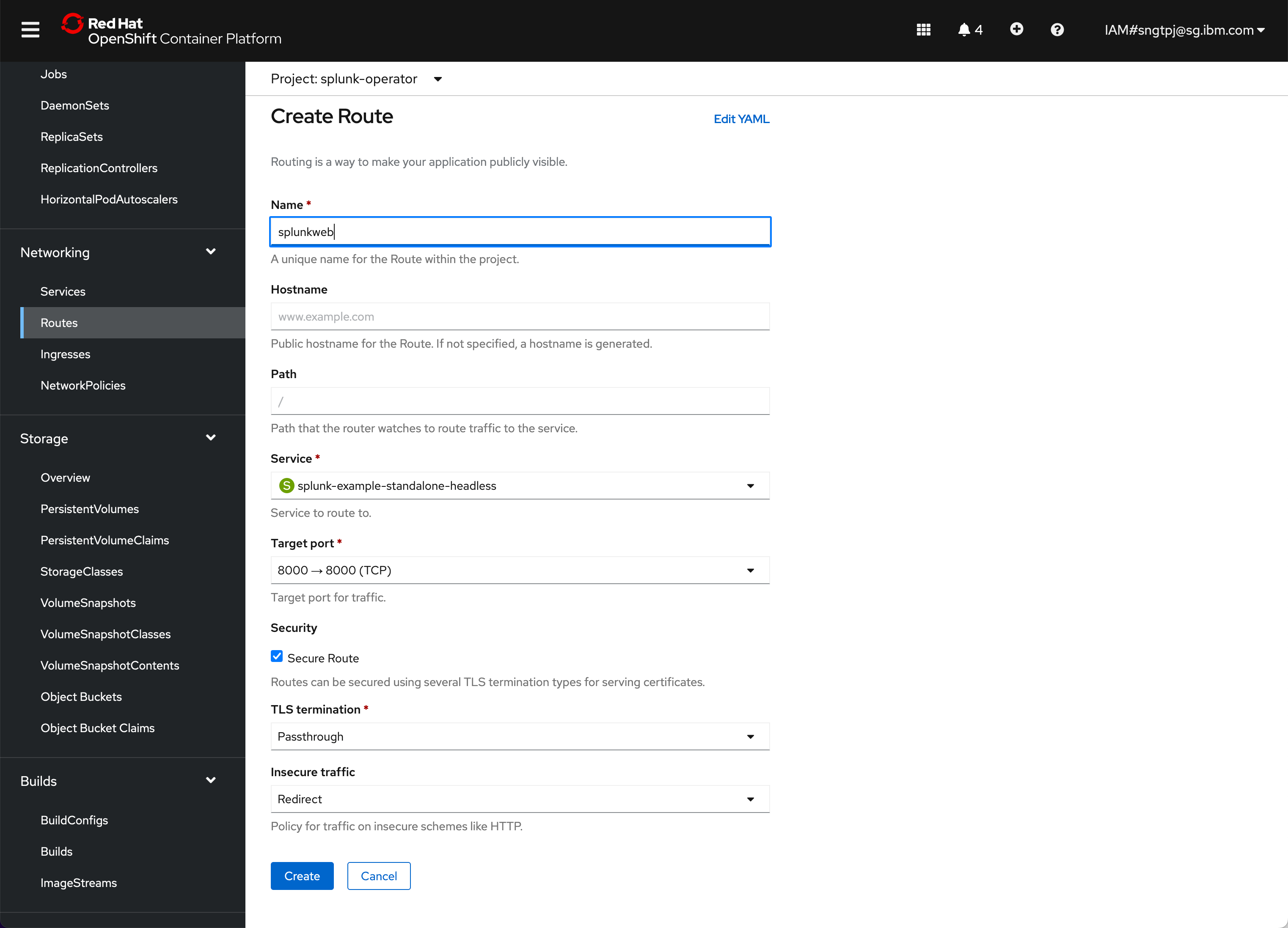

2.4.4.1. Create route for Splunk web

Provide a name for the route and set the following as shown and choose port 8000.

2.4.4.2. Create route for Splunk REST API

Provide a name for the route and set the following as shown and choose port 8089.

2.4.4.3. Splunk public

You should have two routes where Splunk is accessible publicly, clink on the Location link.

oc get routes

NAME        HOST/PORT                                                                                                                     PATH   SERVICES                             PORT        TERMINATION            WILDCARD
splunkapi   splunkapi-splunk-operator.itzroks-270004kcfq-i65iu1-6ccd7f378ae819553d37d5f2ee142bd6-0000.jp-tok.containers.appdomain.cloud          splunk-example-standalone-headless   splunkd     passthrough/Redirect   None
splunkweb   splunkweb-splunk-operator.itzroks-270004kcfq-i65iu1-6ccd7f378ae819553d37d5f2ee142bd6-0000.jp-tok.containers.appdomain.cloud          splunk-example-standalone-headless   splunkweb   passthrough/Redirect   None

2.4.4.4. Getting the url certificate

<server>: obtained from the public route

Example of <server>: splunkapi-splunk-operator.itzroks-270004kcfq-i65iu1-6ccd7f378ae819553d37d5f2ee142bd6-0000.jp-tok.containers.appdomain.cloud

openssl s_client -showcerts -servername <server> -connect <server>:443 </dev/null

2.5. Resources

Splunk search tutorial
